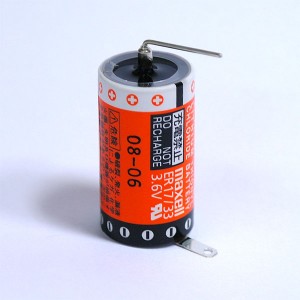

Maxell ER17/33-V2PNH(2/3A 3.6V 1600mAh)


Model : ER 17/33

System : Li-Thionyl Chloride/Inorganic Electrolyte

Nominal Voltage(전 압) : 3.6V

Nominal Capacity(용 량) : 1600mAh(1.6Ah)

Nominal Discharge Current : 75 mA

Operating Temperature Range(사용온도) : -55℃~85℃

Weight(중 량) : 13g

Diameter(직 경) : 17 mm

Height(높 이) : 35 mm



* Nominal capacity indicates duration until the voltage drops down to 2.0V when

  discharged at a nominal dischaarge current at 20 deg. C.

* Dimensions and weight are for the battery itself, but may vary depending on the

  shape of terminals or other factors.
