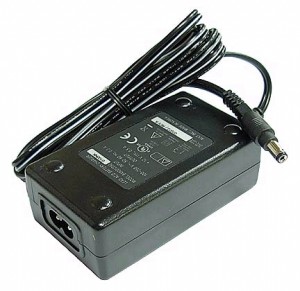

작은 용량의 납축전지용(
12V 1.2Ah,
2Ah,
2.9Ah) 충전기입니다.
* 추가 구성품:
AC전원코드 Input
입력전압(Input Voltage) :
100 to 250VAC -10% +6%
Line Frequency : 47 to 63 Hz
Current : 0.3A Max. at 110VAC Input
Protection : Internal Primary Current
Fuse, Inrush Limiting
Output
Battery Type : Lead Acid Battery
전 압 : 12V
용 량 : 500mAh(0.5Ah)
Charging Method : Constant Current and Constant Voltage
Threshold Voltage : > 1.75V / Cell
Cycle charge Voltage : 2.45V +/-0.2V / Cell
(as measure at PCB output)
Float Charge Voltage : 2.30V +/-0.2V /Cell
(as measure at PCB output)
LED Indicator(엘이디 표시) - RED(적 색) : Charging(충전중)
- GREEN(녹 색) : Fully Charge(만충전)
- Flickering RED(깜박깜박) : Error(에러)
Protection : Over-current Protection (Hiccup)
/ Short Circuit Protection
Over Voltage Protection : > 2.5V +/-5% /Cell
Under Voltage Protection : < 1.5V +/-5% /Cell
Environmental
Operating Temp : 0˚C to 40˚C with no derating
Storage Temp : -30˚C to 85˚C
Dimension : 95(L) x 54(W) x 32(H) [mm]
